Project schedules are among the key project artifacts that are used as a basis for project control. They are one of the most effective ways that a project team can use to coordinate their activities. Project schedules play a key role in making such coordination and to facilitate achieving a project’s time objectives. However, project schedules can play this role only if they are prepared in a reasonable manner. The reasonableness of project schedules can be evaluated from various perspectives including consistency, clarity, completeness, and feasibility of construction plans.
The
following are some of the main considerations that need to be given to
developing project schedules to ensure they are reasonable:
The schedule is complete and entails all the activities that are needed to successfully implement the scope of work
Proper logical relationships (including finish-to-start, start-to-start-, start-to-finish, or finish-to-finish relationships along with proper lag and lead values) are used in creating the project network
An appropriate combination and choosing of activity relationships (including mandatory, preferential, and scenario-based relationships) are created to define activity dependencies
The schedule accounts for the technical, physical, and technological constraints of performing the work
The schedule meets proper contractual milestones, identifies all interim and ultimate contractual deliverables, and satisfies time and resource constraints outlined in the contract
The schedule is clear, reasonable, and complete
Different sections of the schedule are consistent in terms of the timeline, work priorities, and work sequence
As
noted above, activity dependencies are among the key main considerations in
developing well-prepared schedules. A project network not only contains project
activities but also defines activity dependencies (also known as activity ties
or activity relationships). A variety of activity dependencies exists, and activity
relationships are categorized in different ways.
Activity
dependencies can be categorized based on the nature of dependencies that exist
between project activities. From this perspective, activity dependencies are
often categorized into the following two types of dependencies:
Mandatory dependency (also known as hard logic): This relationship represents a dependency that is necessary or inherent in the nature of the work.
Discretionary dependency (also known as soft, preferred, or preferential logic): This type of dependency represents preferential logic that is used to establish a desired sequence of work despite alternative sequences that are acceptable.
It is important to note, however,
that mandatory and discretionary relationships are not the only activity relationships
that are used in project schedules. To better identify activity dependencies,
it is suggested that activity dependencies are further categorized as shown in
Figure 1.
Figure 1. Activity relationship
types
As this figure shows, mandatary
relationships can further be broken down into the following three types:
Imposed relationships: Imposed relationships are those relationships that need to be built into a project schedule to satisfy legal, regulatory or contractual requirements. An example includes a contractually-imposed requirement that mandates using a phased approach (where a portion of work has to be implemented after another portion) in completing certain elements of work.
Physical relationships: This relationship represents a dependency that has to be established between two or more activities due to the nature of the work. An example of dependencies that are inherent in the nature of the work is the need to place a foundation first before erecting a column atop the foundation.
Safety relationships: This relationship represents a dependency that has to be established between two or more activities to ensure safety considerations are accounted for in sequencing project activities. An example of a safety relationship is the need to avoid concurrent logic in scheduling two activities that cannot be undertaken simultaneously because of safety concerns (e.g., a crew that cannot work on the second floor of a building because of the ongoing work on the first floor).
Sometimes, project scheduling
professionals use scenario-based relationships to define dependencies between
project activities. The current article uses the term scenario-based to
characterize these relationships because depending on the implementation
strategy chosen to execute a project, scenario-based relationships may or may not
be used in defining work sequences. Resource relationships are examples of
scenario-based relationships. Resource relationships are often added to the
project schedule due to resource management concerns (e.g., resource
constraints).
For example, if a contractor needs
to implement two non-causally-related activities, each of which requiring a
crane, the contractor may decide to add a finish-to-start relationship between
the two activities if the contractor has only one crane in its possession. In
this example, the two activities are not causally related; however, based on
the scenario described, the contractor has established a relationship between
these two activities to satisfy its resource constraint. If the contractor had
two cranes in its possession, defining a dependency between the two activities
was unnecessary because as noted above, the activities are presumably not
causally linked. Therefore, it is reasonable to recognize the above-referenced
activity relationship as a scenario-based relationship because these
relationships may or may not be used depending on the implementation scenario
or strategy used.
Not all scenario-based relationships
are resource relationships; therefore, in Figure 1, scenario-based
relationships are broken down into the two main types of resource relationships
and others. An example of other scenario based dependencies includes a
dependency that is established between two activities based on an assumed
what-if scenario to manage a likely change in the project scope of work. This
relationship may or may not be required to be established depending on whether
the change occurs or not.
The last category of activity
relationships is improper relationships that consist of redundant, incorrect
logic, and logic loops. Incorrect logic relationships can further be
categorized into errors, missing logic, out-of-sequence, and improper use of
lags and leads. These relationships will be described in greater depth in a
future article.
Planning and scheduling
professionals need to make informed decisions in selecting and using the right
relationship type. In general, it is suggested that only mandatory
relationships are used in developing project schedules unless the use of
discretionary or scenario-based relationships is justified. Similarly, the use
of preferential relationships may not be appropriate in demonstrating that a
schedule follows a reasonable logic. It is recommended that, instead of
resource constraints, planning and scheduling professionals use resource
leveling techniques to ensure the schedule is not bounded by too many
dependencies that could have otherwise been accounted for.
Assessing activity relationships is
critical in preparing or investigating time extension requests or delay
assessments because a proper delay analysis has to be based on a reasonable
schedule. A delay analysis based on a project schedule that contains
questionable activity relationships is defective. Project planning and
scheduling, forensic scheduling experts, and claim management professionals
need to ensure project schedules are free of improper relationships. Otherwise,
the schedule will not be reliable or reasonable and it may not serve its
purpose.
Author: Dr. Amin Terouhid, PE, PMP, PSP | Principal
Consultant
If you are interested to find out more about the main
considerations in developing or evaluating project schedules, please contact us.
Adroit’s consultants have demonstrated their expertise in developing, updating,
constructability review, and forensic evaluation of project schedules and will
be able to assist. You may also be interested to read the following articles:
Schedule constructability review, what does it entail?
Project planning and scheduling professional may use different project scheduling methods and techniques for different projects depending on the type, size, and nature of projects. Repetitive scheduling techniques are used is in linear construction projects. In linear construction projects, the majority of the work is made up of highly repetitive activities. In these projects, a set of project activities are repeated in each location for the entire length of the work. Once a project activity is started and/or ended in one location, it is repeated in another location. Examples of linear construction projects include pipeline projects, highway construction, highway resurfacing and maintenance, airport runway construction and resurfacing tunnels, mass transit systems, and railroads. Because of the highly repetitive nature of the work, high-rise building projects are also often identified as linear in nature.
One of the important considerations in the planning of linear construction projects is to identify a location for the working crew to move to in a manner that its work does not interfere with the work of any other construction crew. Therefore, production rates have to be coordinated to prevent a preceding process from overtaking its succeeding process(s).
Traditional project planning and scheduling methods such as the critical path methods are typically inadequate for effective planning and scheduling of linear construction projects because these planning and scheduling methods do not account for work locations or spatial aspects and do not effectively model project activities that are repetitively performed. Due to such shortcomings, other methods such as line of balance (LOB), vertical production method (VPM), time couplings method (TCM), the repetitive project modelling (RPM), repetitive construction (REPCON), and the repetitive scheduling method (RSM) have been proposed in the literature to better satisfy the planning and scheduling needs of linear construction projects. The various repetitive scheduling techniques can be categorized into the two main classes of linear scheduling methods (LSM) and line of balance (LOB) techniques.
Line of balance techniques use three key types of charts to illustrate repetitive construction activities. These charts are objective chart, production plan, and progress chart. LOB was first used in the manufacturing industry. It starts with the end product and the ultimate output quantity and schedule in mind. This information is documented in the production plan and it is then used to establish a cumulative plan that delineates how much work ought to be delivered over time. This cumulative plan then becomes the objective chart against which the actual progress is measured using the progress chart. An example objective chart that is used in the line of balance method is shown in the figure below.

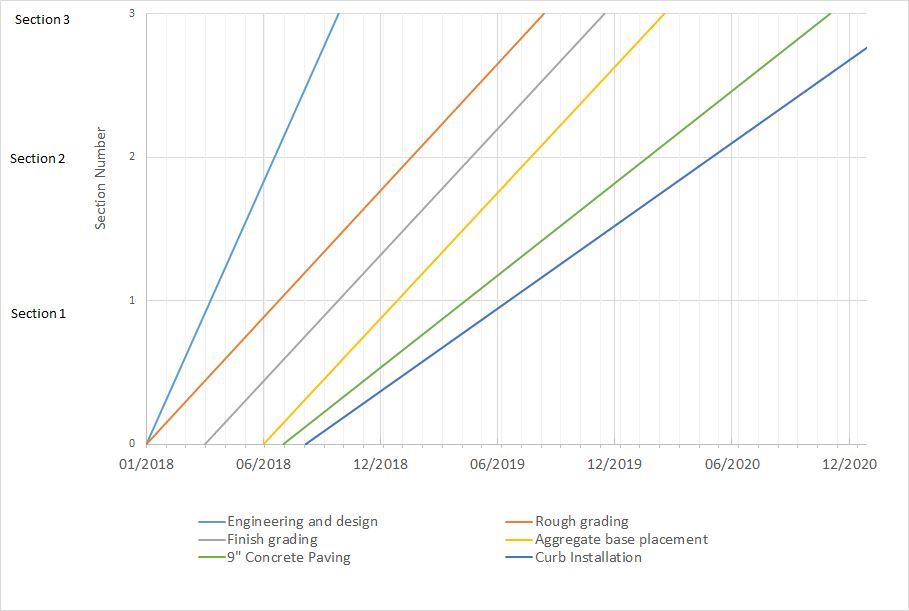

LSM schedules, however, use velocity diagrams representing each activity. The schedule format may provide the planned and actual production rates on a time-scaled format. A typical LSM diagram represents time along the X-axis (i.e., horizontal axis) and some measure of repetitive units along the Y-axis (i.e., vertical axis). This diagram also includes lines that represent all the linear activities that are involved in the completion of the repetitive units. A linear activity is a project activity that progresses along a physical path. This path is represented by the location axis in the LSM. Over the course of the project and at any point of progress along this path, the activity is completed up to that point. For instance, consider an activity that involves rough grading before finish grading in a road construction project. In this example, as the path is rough-graded, the rough-grading activity is complete up to that point of progress along the path. Once the path is rough-graded at any location, no need exists anymore to go back and rough-grade the location. Therefore, any location along the path that is behind the current work location is a work-front for succeeding activities (e.g., finish grading) to be performed. An example LSM diagram is shown in the figure below.
